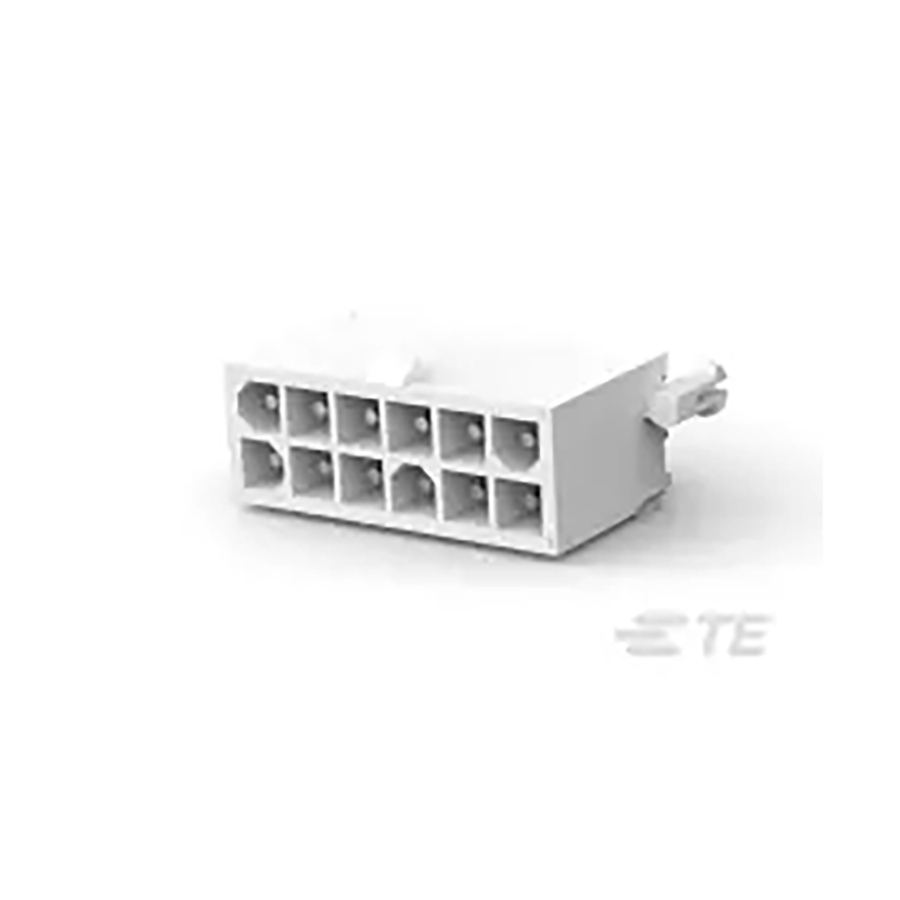

1-794066-0
Manufacturer:
TE Connectivity
Mfr.Part #:
1-794066-0
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:12 Pitch:4.1148 mm
| Parameter | Value |
|---|---|
| Length | 26.39 mm |
| Width | 9.83 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Height | 13.49 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 5.08 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 4.14 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Pitch | 4.1148 mm |
| Number of Terminals | 12 |
| Current Rating | 9.5 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Number of Circuits | 12 |
| Orientation | Vertical |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | White |
| Gender | Pin (Male) |
| Number of Contacts | 12 |
| ELV | Compliant |
| Connector Type | Header |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 4.14 mm |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Fastening Type | Ramp |
| Circuit Application | Power |
| Connector System | Wire-to-Board |
| Contact Style | Pin |
| Max Voltage Rating (AC) | 600 V |
| Contact Current Rating | 9.5 A |
| Housing Color | White |
| Plating | Tin |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 62 µm |
| Plating Thickness | 150 µm |
| Contact Gender | Male |
| Number of Power Positions | 12 |
| VDE Tested | No |
| Number of Signal Positions | 0 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Sealable | No |
| Contact Retention | Without |
| Termination Post Length | 4.45 mm |
Stock: 63
Distributors
pcbx
pcbxUnit Price$1.56566
Ext.Price$1.56566
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.56566 | $1.56566 |
| 10 | $1.30003 | $13.00030 |
| 25 | $1.19134 | $29.78350 |
| 50 | $1.09174 | $54.58700 |
| 100 | $1.00046 | $100.04600 |
| 300 | $0.96325 | $288.97500 |
| 500 | $0.92742 | $463.71000 |
| 1000 | $0.89318 | $893.18000 |
